 Researchers have created a configurable radio-frequency filter using origami and ink made of silver that’s printed across the folds. By changing the configuration of the filter, the silver dipoles block different frequencies. The research team included, from left to right, Manos Tentzeris, the Ken Byers Professor in Flexible Electronics in the School of Electrical and Computer Engineering; graduate students Larissa Novelino and Abdullah Nauroze; and Glaucio Paulino, the Raymond Allen Jones Chair in the School of Civil and Environmental Engineering (Photo: Rob Felt)
|
By Josh Brown, Georgia Tech Research News
Researchers at the Georgia Institute of Technology have devised a method for using an origami-based structure to create radio frequency filters that have adjustable dimensions, enabling the devices to change which signals they block throughout a large range of frequencies.
The new approach to creating these tunable filters could have a variety of uses, from antenna systems capable of adapting in real-time to ambient conditions to the next generation of electromagnetic cloaking systems that could be reconfigured on the fly to reflect or absorb different frequencies.
The team focused on one particular pattern of origami, called Miura-Ori, which has the ability to expand and contract like an accordion.
“The Miura-Ori pattern has an infinite number of possible positions along its range of extension from fully compressed to fully expanded,” said Glaucio Paulino, the Raymond Allen Jones Chair in the School of Civil and Environmental Engineering. “A spatial filter made in this fashion can achieve similar versatility, changing which frequency it blocks as the filter is compressed or expanded.”
Results from the study, which was supported by the National Science Foundation, the U.S. Department of Defense, and the Semiconductor Research Corporation, were reported Dec. 10 in the journal Proceedings of the National Academy of Sciences.
The researchers used a special printer that scored paper to allow a sheet to be folded in the origami pattern. An inkjet-type printer was then used to apply lines of silver ink across those perforations, forming the dipole elements that gave the object its radio frequency filtering ability.
“The dipoles were placed along the fold lines so that when the origami was compressed, the dipoles bend and become closer together, which causes their resonant frequency to shift higher along the spectrum,” said Manos Tentzeris, the Ken Byers Professor in Flexible Electronics in the School of Electrical and Computer Engineering.

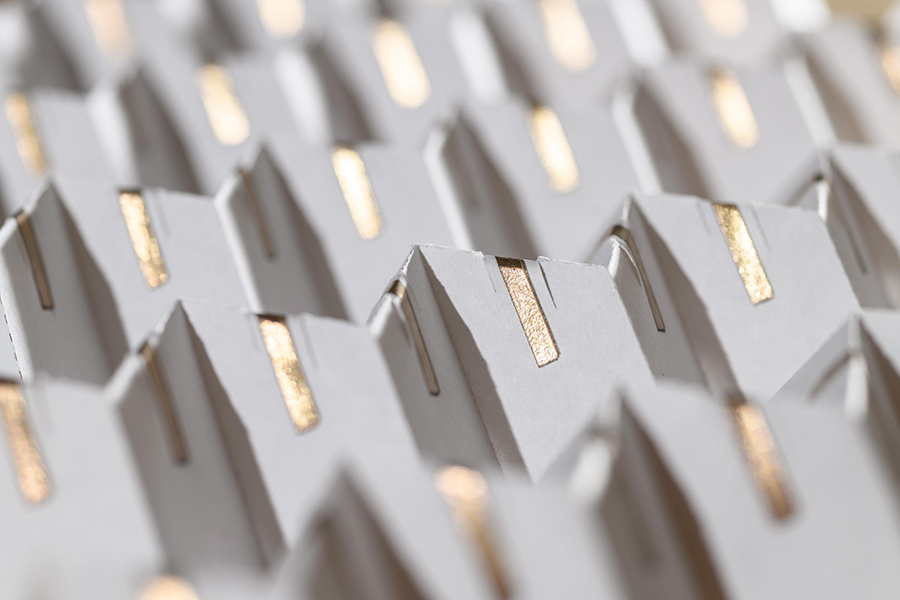

 Silver dipoles are arranged across the folds of a Miuri-Ori pattern to create a radio frequency filter that’s tunable. By adjusting the dimensions, the filter can block a wide range of frequencies. (Photo: Rob Felt)
|
To prevent the dipoles from breaking along the fold line, the perforations were suspended at the location of each silver element and then continued on the other side. Additionally, along each of the dipoles, a separate cut was made to form a “bridge” that allowed the silver to bend more gradually. For testing various positions of the filter, the team used 3D-printed frames to hold it in place.
The researchers found that a single-layer Miura-Ori-shaped filter blocked a narrow band of frequencies while multiple layers of the filters stacked could achieve a wider band of blocked frequencies.
Because the Miura-Ori formation is flat when fully extended and quite compact when fully compressed, the structures could be used by antenna systems that need to stay in compact spaces until deployed, such as those used in space applications. Additionally, the single plane along which the objects expand could provide advantages, such as using less energy, over antenna systems that require multiple physical steps to deploy.
“A device based on Miura-Ori could both deploy and be re-tuned to a broad range of frequencies as compared to traditional frequency selective surfaces, which typically use electronic components to adjust the frequency rather than a physical change,” said Abdullah Nauroze, a Georgia Tech graduate student who worked on the project. “Such devices could be good candidates to be used as reflectarrays for the next generation of cubesats or other space communications devices.”
There were also physical advantages to using origami.
“The Miura-Ori pattern exhibits remarkable mechanical properties, despite being assembled from sheets barely thicker than a tenth of a millimeter,” said graduate student Larissa Novelino. “Those properties could make lightweight yet strong structures that could be easily transported.”
This material is based upon work supported by the National Science Foundation under grant Nos. CMMI 1538830 and RD928, the U.S. Department of Defense Threat Reduction Agency under grant No. RE202, the Semiconductor Research Corporation under grant No. RG460, and the Air Force Office of Scientific Research under grant No. RK049. The work was also supported by the Brazilian National Council for Scientific and Technological Development, under project 235104/2014-0. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the authors and do not necessarily reflect the views of these agencies.
CITATION: Syed Abdullah Nauroze, Larissa S. Novelino, Manos M. Tentzeris, and Glaucio H. Paulino, “Continuous-range tunable multi-layer frequency selective surfaces using origami and inkjet-printing,” (Proceedings of the National Academy of Sciences, December 10, 2018). http://dx.doi.org/10.1073/pnas.1812486115
